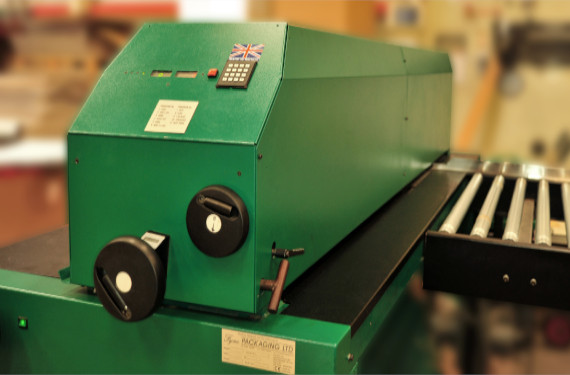

Vulcan Single Pass Box-Maker

The single-pass Vulcan box-maker is ideal for high speed, low volume production whilst also excelling at high volume production. Capable of producing a box of any length, 1 metre wide and 1.2 metres deep, the Vulcan box-maker offers versatility at the touch of a button.

With gross margins of up to 70%, the short run box-making business could provide a very profitable expansion to your business from your existing customer base. Maximise your business’s profits by reducing long term packaging costs as you remove third party production and take control yourself.

Capable of producing up to 800 boxes per hour, the single-pass Vulcan box-maker will slot crease in one quick pass, giving you cardboard boxes ready for assembly as and when they are required. The Vulcan machine offers a range of 33 FEFCO styles, giving the user the ability to produce packaging perfect for the product.

As with all of our machines a motorised back guide is available to be fitted. We offer full training and after sales support for all of our machines, as well as service plans for their full lifetime.

Technical Data
Machine Program
  • Choose from 33 FEFCO styles or other custom programs (such as a crease only program)
  • Save up to 1000 commonly used configurations
  • Use the required internal dimensions of the box - the machine will work out the required blank size
Dimensions

  • Machine Length: 3200mm
  • Machine Width: 1000mm
  • Machine Height: 1500mm
  • Machine Weight: Approx 1t
Electrical Supply
  • Electrical: 240v 50cy. Single Phase
Air Supply
  • 60 - 100 P.S.I. (16 C.F.M. Max.)
Materials

  • All grades of single wall cardboard and up to 400 400 A/A
Key Benefits

  • Handles short runs economically
  • Up to 1000 boxes per hour
  • Slot and crease in one quick pass
  • Produce boxes up to 1m wide, 1.2m deep and and length
  • Outfeed table on wheels
  • British designed and built

Click here to find out more about the different box styles you can produce with Fyne Packaging Box Making Machinery
Available Extras

  • Catcher Table
  • Conveyor
  • Glue gun
  • Staplers

    • If you would like any more information on the Vulcan Box Maker then please contact us on 01525 852246. To book a demonstration please contact us. We can organise one at our Leighton buzzard branch or at one of our customers around the country
